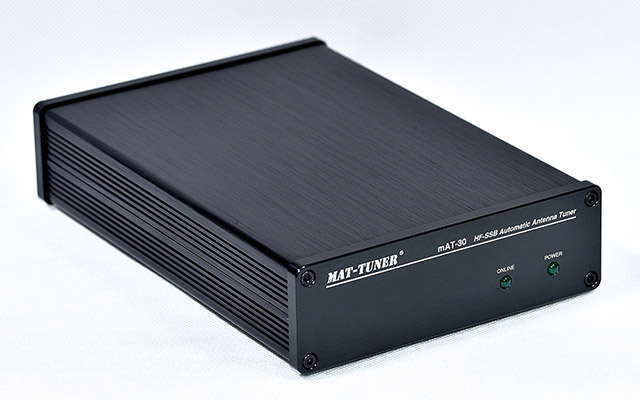

mAT-30是一款专门为现代YAESU电台设计的专用型天调,只要能够使用YAESU FC-30,40,和50的电台,都可以使用mAT-30。
经过实际测试验证过的型号有:FT-100D,FT-857D,FT-897D,FT-450D,FT-891,FT-950,FT-991,其他现代型号理论上也可以使用,我们将继续测试并扩展这个列表。
而一些老旧型号的电台,比如FT-747,757,80C,因为他们没有现代机所具有的8针天调数据线插座,故不能使用该型号天调。
如果您使用这些电台,我们推荐您选择mAT-125E通用型天调,它可以良好的支持这些电台。

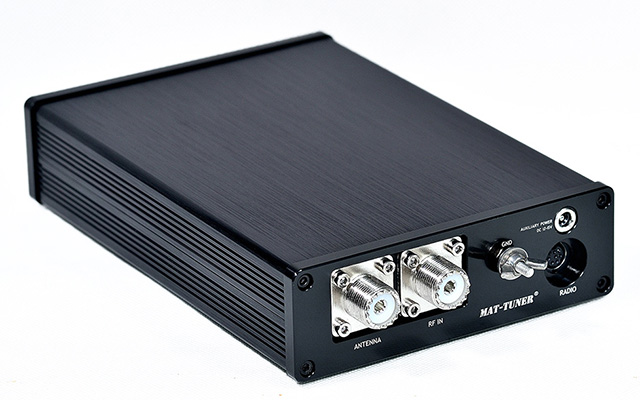

mAT-30天调自带一个8针的数据线,和原装天调一样,通过连接该数据线,电台就可以良好的控制天调实现各项调谐功能、在线/离线切换和频率跟踪功能,使用方法也和原装天调一样简单、方便、快捷。
The mAT-30 provides automatic antenna tuning across the entire HF spectrum plus 6 meters, at power levels up to 120 watts. It will tune dipoles, verticals, Yagis, or virtually any coax-fed antenna. It will match an amazing range of antennas and impedances, far greater than some other tuners you may have considered, including the built-in tuners on many radios.
The mAT-30 has 16,000 frequency memories. When tuning on or near a previously tuned frequency, the mAT-30 uses "Memory Tune" to recall the previous tuning parameters in a fraction of a second. If no memorized settings are available, the tuner runs a full tuning cycle, storing the parameters for memory recall on subsequent tuning cycles on that frequency. In this manner, the mAT-30 "learns" as it is used, adapting to the bands and frequencies as it goes.

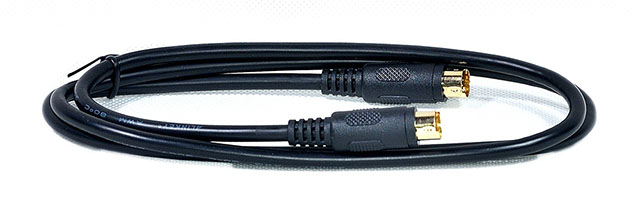

The mAT-30's interface cable provides control signals between YAESU radio and the tuner. As the figure shows, the cable have two mini-DIN 8-pin plugs.
Supported YAESU radios are FT-100, FT-857D,FT-897D,FT-450D,FT-891,FT-950,FT-991. Push and hold the radio's [TUNER] button for two seconds to start the tuning process.
Push [TUNER] quickly to bypass the tuner.
The supplied radio interface cable is 50 centimeters long. If it is desired that the mAT-30 is positioned farther from the transceiver than this cable length allows, a custom cable will need to be constructed. This can be accomplished in two ways: Cut the supplied cable and solder a jumper wire between all the connections, or purchase new connectors and cable to construct a custom- length interface cable from scratch.
