Antenna Tuner

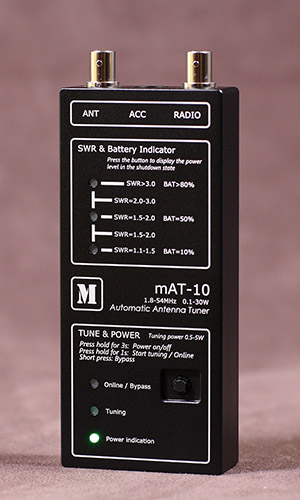

mAT-10 QRP TUNER  (Support FT-817/818)

The mAT-10 is a tuner designed for YAESU FT-817/818, it can also be used in other QRP transceivers. When it is connected to FT-817/818 through a dedicated control cable, it is a dedicated tuner, which can achieve convenient "one-key tuning". If no control cable is used, it is a universal QRP tuner for all low-power transceivers.

The tuner can work within the range of 1.8MHz to 54MHz, at power levels up to 30 watts. It will tune dipoles, verticals, Yagis, or virtually any coax-fed antenna. It will match an amazing range of antennas and impedances, far greater than some other tuners you may have considered, including the built-in tuners on many radios.

The tuner has two 10440 lithium batteries installed inside, and uses a magnetic retainer relay that saves electricity very much. It can be used for a long time after it is full of electricity.

As you can see, the shell of the mAT-10 is carved out of a whole piece of aluminium, its surface is oxidized to black, and the text on the front panel is carved by laser. It's very small, delicate, beautiful and portable. We believe you will like it.

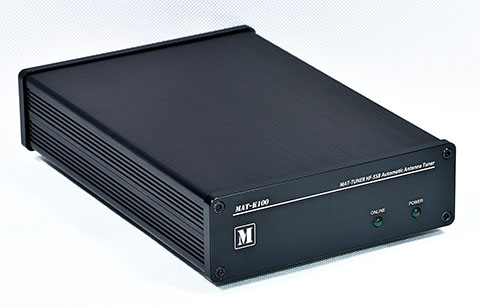

mAT-K100 Tuner For KENWOOD & ICOM

The mAT-K100 is an automatic antenna tuner specially designed for modern KENWOOD and ICOM HF transceivers. It has two control cables to choose from: mAT-CK and mAT-CI. They are suitable for KENWOOD and ICOM transceivers respectively. With matching control cables, tuners can be used for corresponding transceivers.

The mAT-K100 provides automatic antenna tuning across the entire HF spectrum plus 6 meters, at power levels up to 120 watts. It will tune dipoles, verticals, Yagis,Long-wire,Whip or virtually any coax-fed antenna. It will match an amazing range of antenna and impedances, far greater than some other tuners you may have considered, including the built-in tuners on many radios.

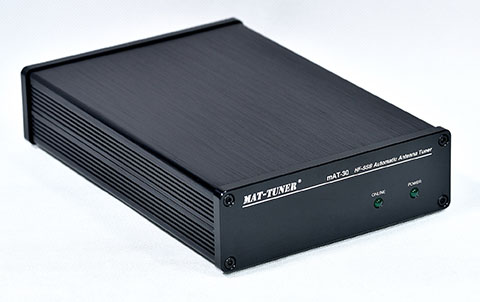

mAT-30 Automatic Tuner For YAESU

mAT-30 is specially engineered to integrate with you YAESU transceiver, and is fully compatible with YAESU tuner. The mAT-30 connects to the CAT port on the back of the radio and is operated by the radio through this CAT interface.

It will tune dipoles, verticals, Yagis,Long-wire,Whip or virtually any coax-fed antenna. It will match an amazing range of antenna and impedances, far greater than some other tuners you may have considered, including the built-in tuners on many radios.

Partial radio list: FT-100D,FT-857D,FT-897D,FT-450D,FT-891,FT-950,FT-991,FT-991A,FTDX-3000. After actual comparison test, mAT-30 can tune the antenna with SWR higher than 3 when FT-891 is matched.

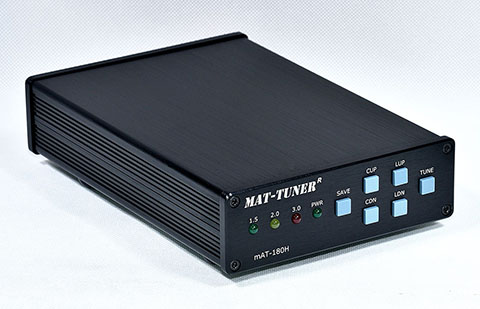

mAT-180H Tuner For ICOM & KENWOOD

The mAT-180H is an automatic antenna tuner specially designed for modern ICOM and KENWOOD HF transceivers. It has two control cables to choose from: mAT-CI and mAT-CK. They are suitable for ICOM and KENWOOD transceivers respectively. With matching control cables, tuners can be used for corresponding transceivers.

The mAT-180H provides automatic antenna tuning across the entire HF spectrum plus 6 meters, at power levels up to 120 watts. It will tune dipoles, verticals, Yagis,Long-wire,Whip or virtually any coax-fed antenna. It will match an amazing range of antenna and impedances, far greater than some other tuners you may have considered, including the built-in tuners on many radios.

It has four fine-tuning keys, and sometimes you can get a lower SWR with them.

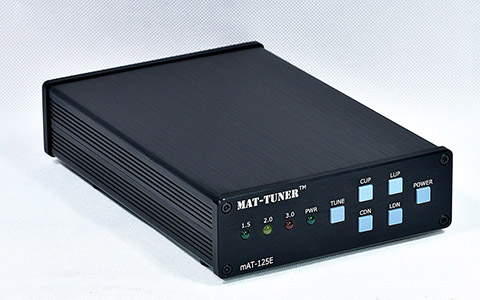

mAT-125E General Automatic Antenna Tuner

The mAT-125E can work within the range of 1.6MHz to 54MHz. The mAT-125E provides automatic antenna tuning across the entire HF spectrum plus 6 meters, at power levels up to 120 watts. It will tune dipoles, verticals, Yagis, or virtually any coax-fed antenna. The mAT-125E has 16,000 frequency memories. When tuning on or near a previously tuned frequency, the mAT-125E uses "Memory Tune" to recall the previous tuning parameters in a fraction of a second.

Two 18650 lithium batteries installed inside tuner to provide power for the tuner. mAT-125E uses little power while tuning, and essentially zero power when in standby, when the equipment is full of electricity, it can work for a long time.

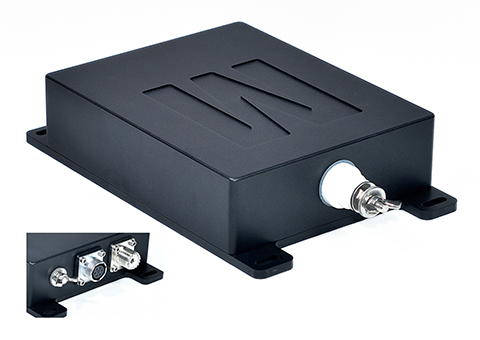

mAT-40 Automatic Antenna Tuner

The mAT-40 lets you rapidly tune any antenna automatically: unbalanced or single-wire. It can be operated by various brands of transmitters by selecting different interface cables, such as ICOM, YAESU, and KENWOOD, just like their own brand tuners. The tuner housing is produced by aluminum milling and oxidation surface technology, beautiful, delicate, compact and firm. The mAT-40 can work well in all kinds of harsh outdoor environments. The maximum size of the tuner is only 20 cm, which is the smallest outdoor antenna tuner now.

The mAT-40 also features advanced memory tuning, providing 16000 memory locations. When tuning near a previously used frequency it will recall the settings for nearly instant tuning. The mAT-40 will tune dipoles, verticals, Yagis,Long-wire,Whip or virtually any coax-fed antenna. It will match an amazing range of antenna and impedances, far greater than some other tuners you may have considered, including the built-in tuners on many radios.

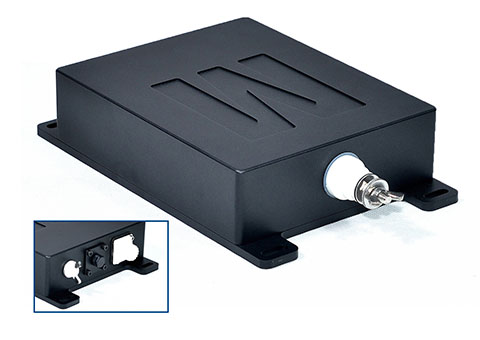

mAT-50 Automatic Antenna Tuner

mAT-50 uses a number of advanced control technology, is currently the highest level of control technology antenna tuner. mAT-50 consists of two parts: tuner and coupler. Tuner are outdoor parts for tuning antennas. The coupler is an indoor part which is used to connect the transceiver, provide power for the tuner and control the tuner for tuning. There is only one 50 ohm RF coaxial cable between the tuner and the coupler. There are two versions of the coupler, the YAESU version and the ICOM&KENWOOD version, which are used to connect YAESU and ICOM&KENWOOD transceivers, respectively.

mAT-50 uses "No-Control-Line" technology and "Power-Off-Hold" technology. No-Control -Line technology can transmit RF power signal, control signaling and DC power on coaxial cable. The tuner does not need to be connected to a control line alone, making the tuner easy to install and use. Power-Off-Hold technology is that the tuner is powered only in tuning, and the coupler interrupts the tuner's DC after tuning. This technology enables mAT-50 to have more stable performance and excellent anti-interference capability.

It will tune dipoles, verticals, Yagis,Long-wire,Whip or virtually any coax-fed antenna. It will match an amazing range of antenna and impedances, far greater than some other tuners you may have considered, including the built-in tuners on many radios.
