The mAT-1500Pro is a multipurpose high-power automatic antenna tuner that can match almost all transmitters and linear amplifiers. The maximum RF power allowed is 1500 watts (SSB), the frequency range allowed is 1.8-30MHz, and two antennas can be connected at the same time.
According to the different connected transmitters, the tuner has three modes: YAESU, ICOM and GENERAL. The tuner can automatically determine and match the type of the connected transmitters to minimize manual operation.
This is the latest version of the tuner. Compared with the old version, it has an updated design and added a protection function for excessive RF power during the tuning cycle, which is not easily damaged by incorrect operation. The tuner will not be easily damaged by occasional incorrect operation by the user. However, we still strongly recommend that you operate the tuner according to the instructions in the manual to avoid putting the tuner in danger.
When the mAT-1500Pro operates in GENERAL mode, it supports both front-panel manual control and remote control. An RS-232 control socket is provided on the rear panel. The tuner can be controlled by a computer or other terminal devices. This universal control interface uses only a few simple commands to control all tuner functions. Remote control is available only in GENERAL mode and is not supported in other modes.
The tuner adopts an all-aluminum casing and CNC panel, which looks beautiful and sturdy, and is relatively light in weight.
Operation Modes
GENERAL Mode
The tuner working in this mode can adapt to almost all transmitters. When connected to DC power supply only (without any control Cable), the tuner automatically enters GENERAL mode. Manual tuning and ONLINE/BYPASS setting required.
YAESU Mode
When connected to a YAESU transmitter via mAT-CY control Cable, the transmitter controls the tuner through the cable and powers the tuner. Fully compatible with YAESU brand tuners (FC-30, FC-40, FC-50).
ICOM Mode
When connected to an ICOM or KENWOOD transmitter via mAT-CI or mAT-CK control Cable, the transmitter controls the tuner through the cable and provides power. Most ICOM and KENWOOD transceivers can operate directly with our tuner.
Important Note
When using mAT-CY control Cable for Yaesu transmitters, this tuner is only compatible with existing modern Yaesu transmitters. It cannot guarantee good compatibility with Yaesu transmitters that will be released in the future.

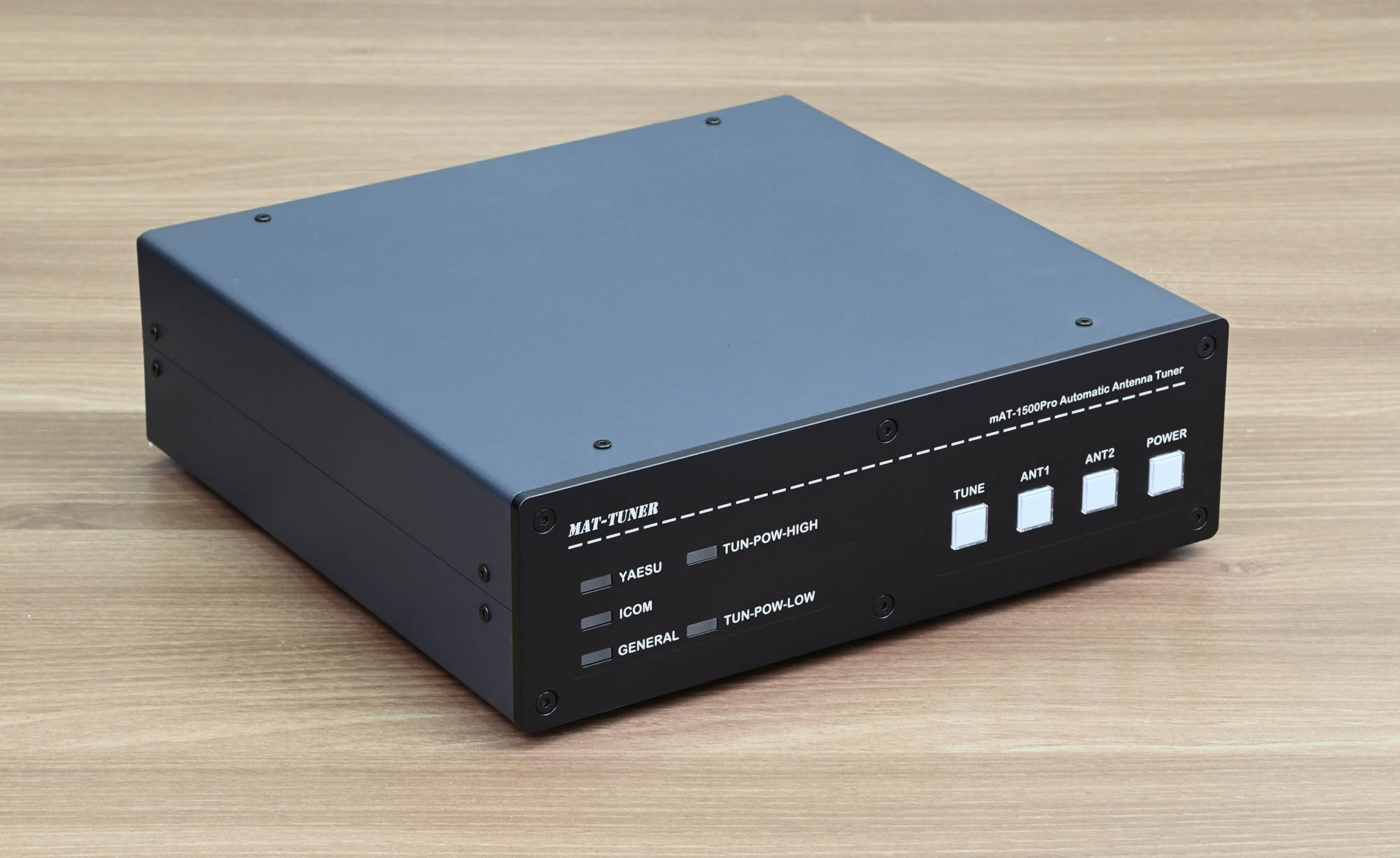

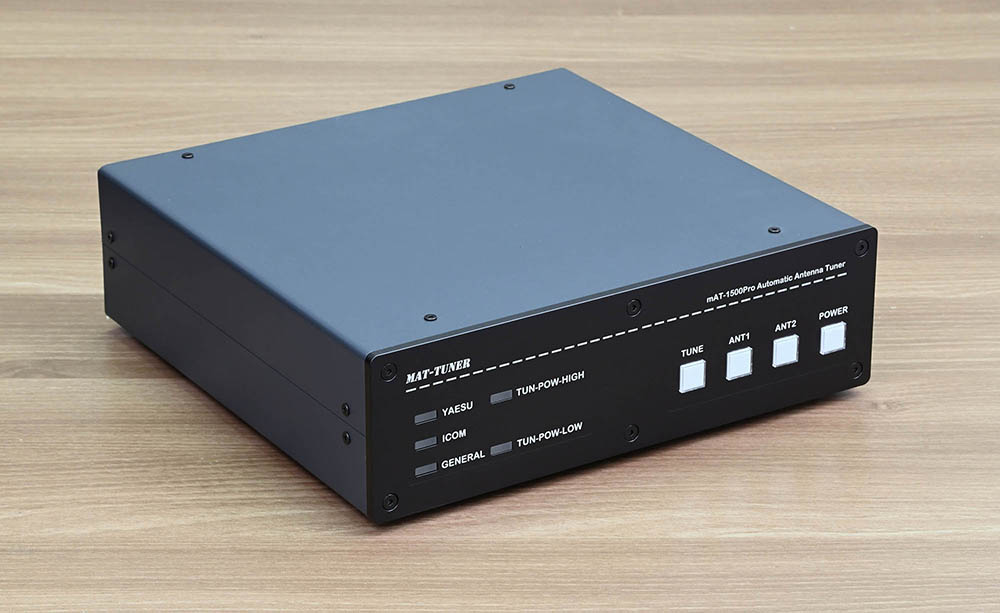

Front Panel

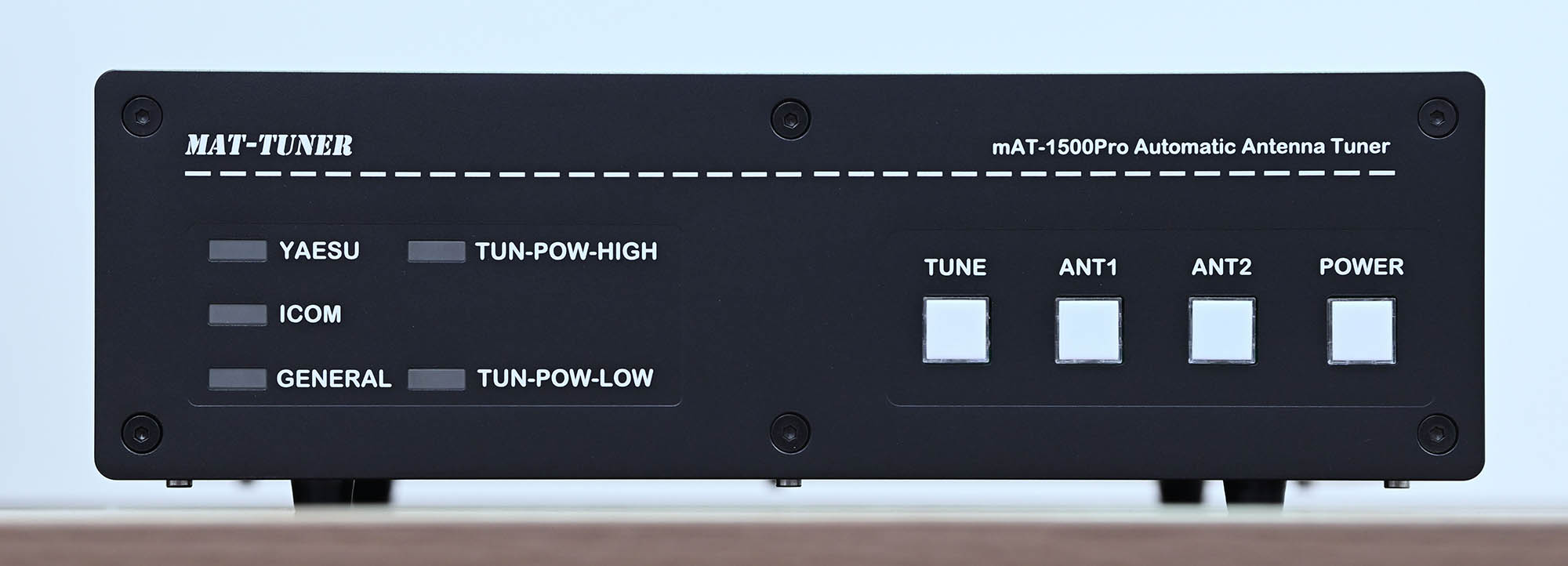

Front Panel Components:
- Mode Indicator Lights - GENERAL, YAESU and ICOM indicator lights show current operation mode
- TUN-POW-HIGH Indicator - High tuning power alarm
- TUN-POW-LOW Indicator - Low tuning power alarm
- TUNE Button - In General mode: tuning button and ONLINE/BYPASS switch. In YAESU/ICOM modes: status indicator only
- ANT1, ANT2 Buttons - Antenna selection buttons and indicator lights
- POWER Button - In General mode: power switch and indicator. In other modes: power indicator only

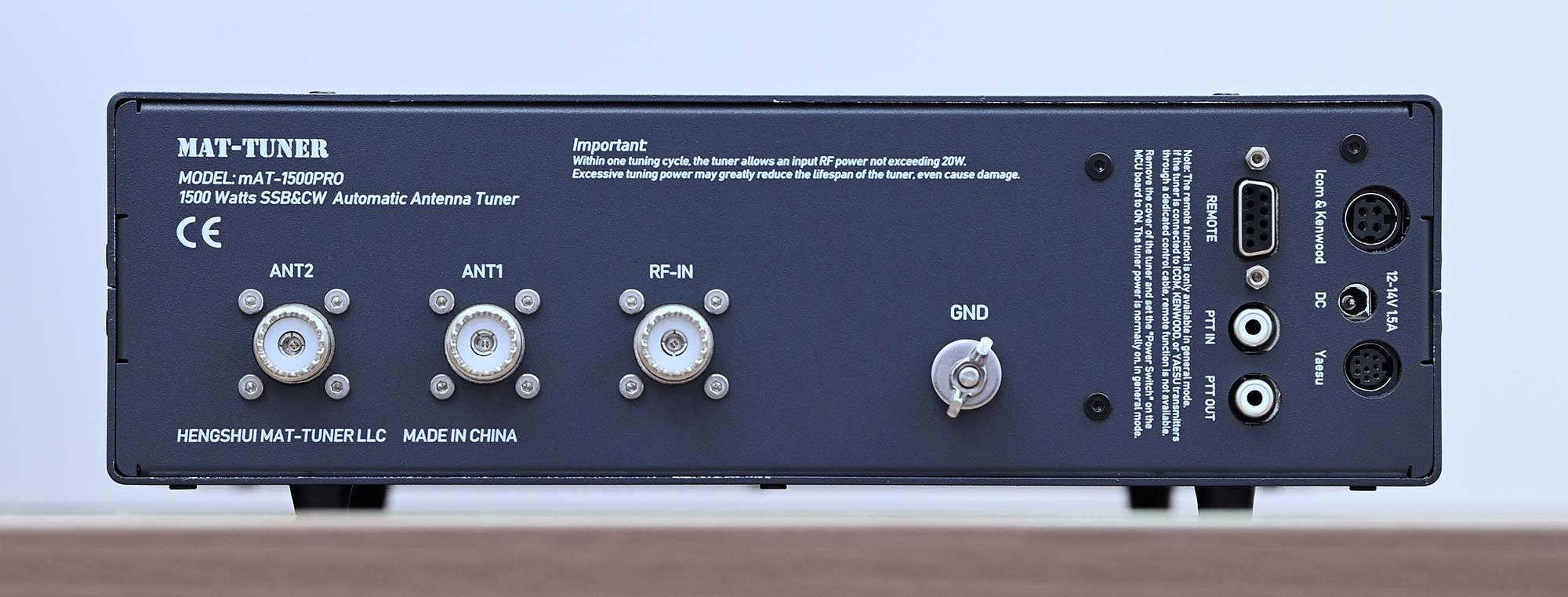

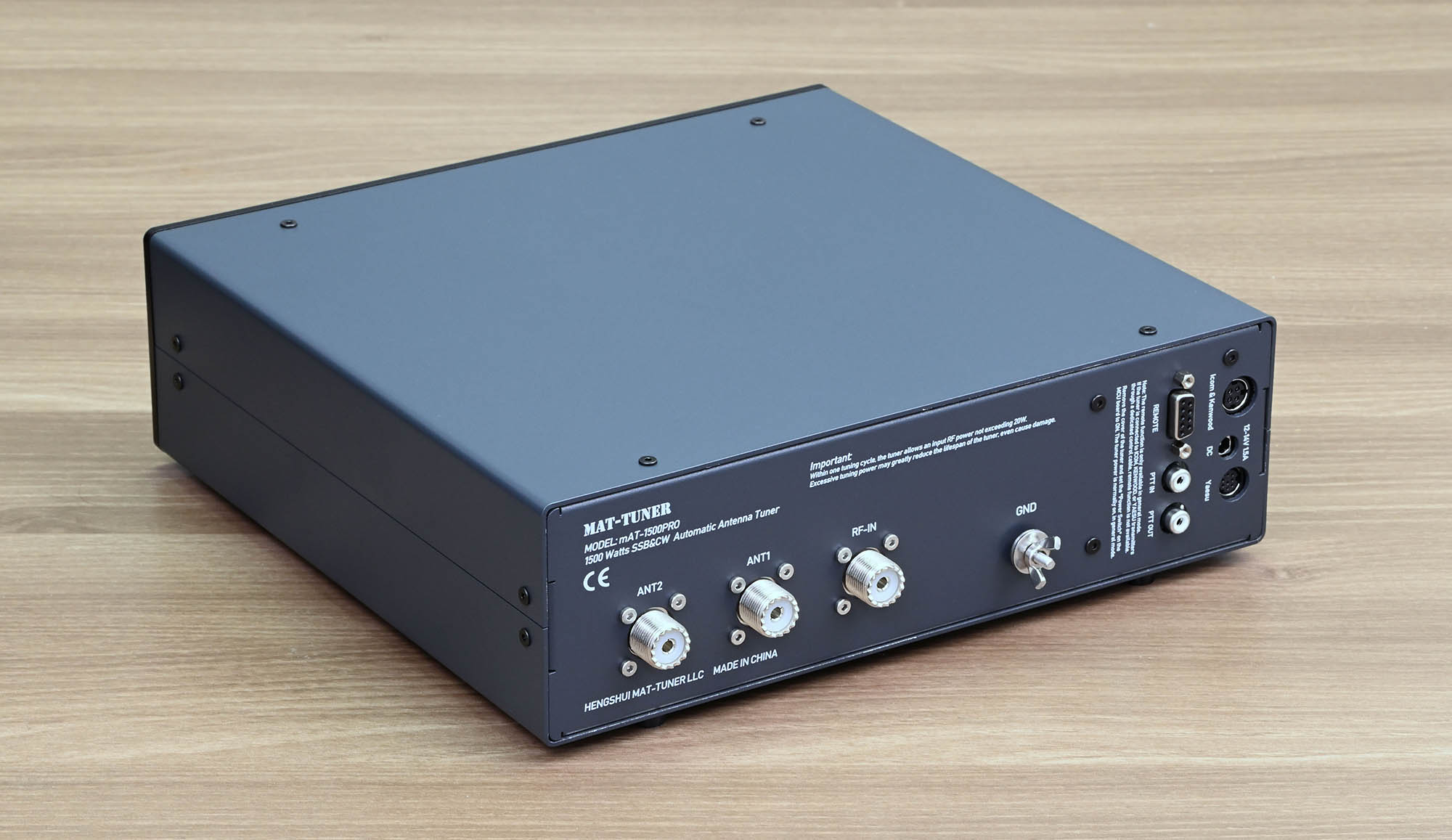

Rear Panel

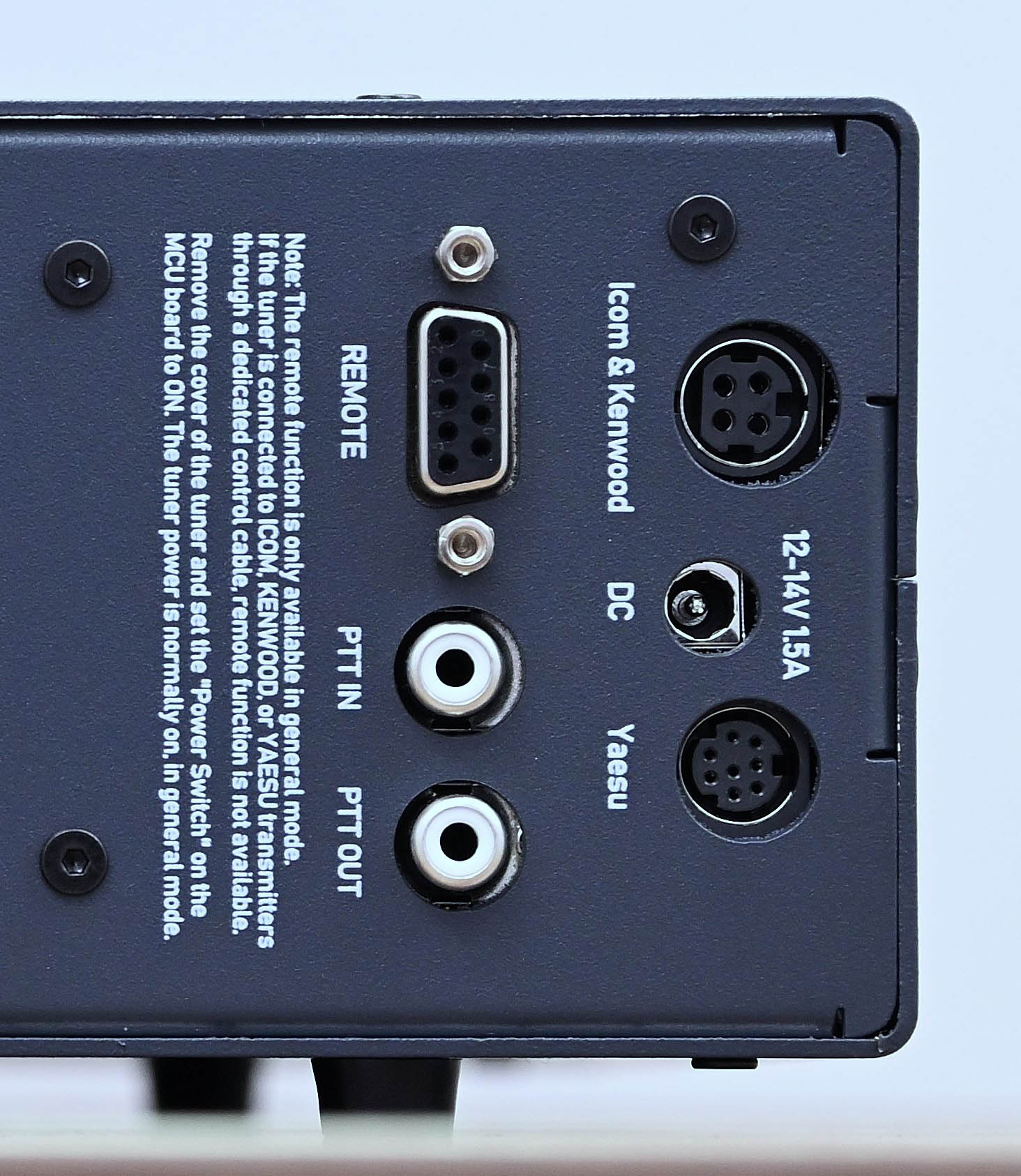

Rear Panel Connectors:
- RF-IN - RF input from transmitter or linear amplifier
- ANT1, ANT2 - Dual antenna outputs (selectable via front panel)
- GND - Ground terminal for system performance
- ICOM & Kenwood - Control Cable socket for ICOM (mAT-CI) or KENWOOD (mAT-CK)
- YAESU - Control Cable socket for YAESU transmitters (mAT-CY)
- DC - 12-14V DC power input (minimum 2.0A)
- REMOTE - RS232 remote control interface (GENERAL mode only)
- PTT IN - Transmitter PTT signal input (RCA cable included)
- PTT OUT - PTT signal output to linear amplifier (RCA cable included)
Connection Priority:
If multiple connections exist, tuner mode priority is: YAESU > ICOM > GENERAL
Important Safety Notes
PTT Control: It is strongly recommended to use the PTT IN and PTT OUT sockets to control PTT signal transmission between transmitter and linear amplifier. During tuning, the amplifier is prevented from amplifying low-power RF signals to avoid tuner damage.
YAESU Transmitters: PTT signal is already included in mAT-CY control Cable. If other cables (like ACC) contain PTT signals, disconnect them to prevent amplifier activation during tuning.
Technical Specifications
| Frequency Range | 1.8 - 30 MHz |
|---|---|
| Maximum RF Power | 1500W (SSB), 400W (DATA) |
| Tuning Power | 5-15W |
| Tuning Time | ≤ 8 seconds (Programmed), 0.1 seconds (From memory) |
| Memory Channels | 16000 |
| Antenna Ports | Dual (ANT1 and ANT2), selectable |
| Operation Modes | GENERAL, YAESU, ICOM |
| Remote Control | RS232 interface (GENERAL mode only) |
| Power Requirements | DC 12-14V, 2.0A minimum |
| Operating Temperature | -10°C ~ +60°C (14°F ~ 140°F) |
| Dimensions (H x W x L) | 290 x 243 x 78 mm (Unit), 337 x 312 x 144 mm (Package) |
| Weight | 3.5 Kg (7.72 lb / 123.5 oz) Net, 4.1 Kg (9.04 lb / 144.7 oz) Gross |
| Construction | All-aluminum casing, CNC-machined panel |
Standard Accessories
- 5.5mm DC power line (intermediate contact diameter 2mm) - Standard
- RCA control cable - 2 pcs (Standard)
Optional Accessories
- mAT-CY control Cable for YAESU
- mAT-CI control Cable for ICOM
- mAT-CK control Cable for Kenwood
