Product Overview
Important Note
The tuner uses a magnetic latching relay. When operating the tuner, please do not place it near strong magnets, especially magnetic brackets, otherwise it may be affected and cause it to malfunction.
The mAT-1F is an antenna tuner designed specifically for the Yaesu FTX-1 Field and cannot be used with other transmitters! It is fully compatible with the original brand's antenna tuner, allowing users to operate it directly from the transmitter's front panel just as they would with the original tuner.

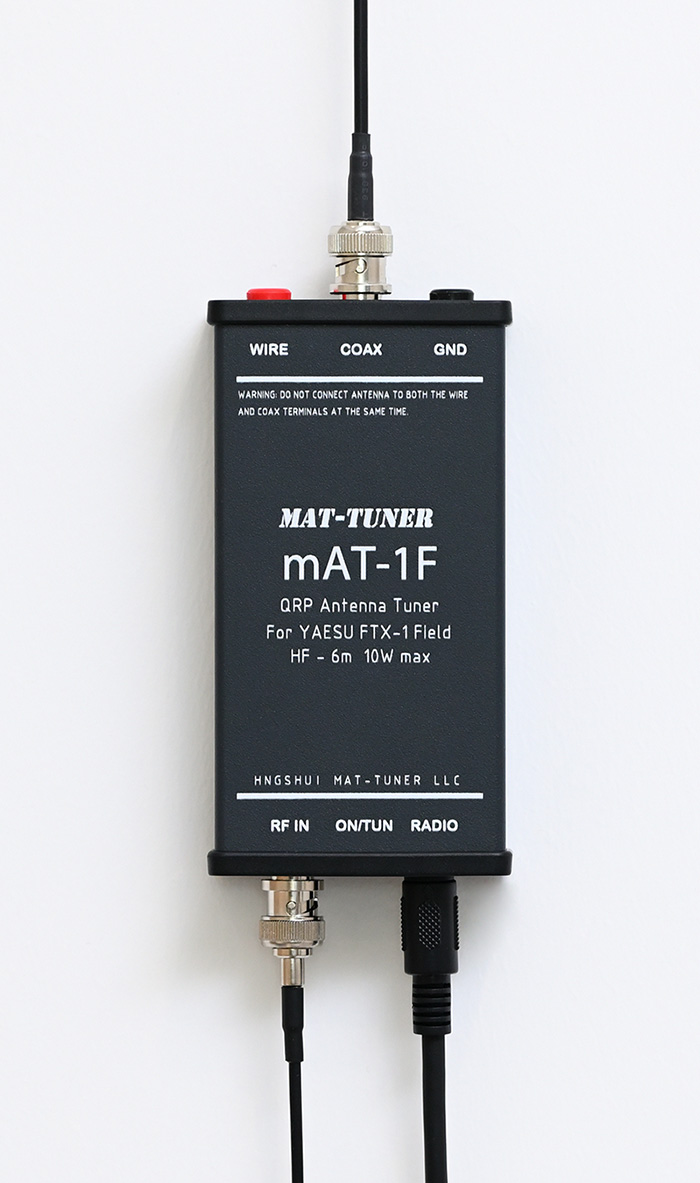

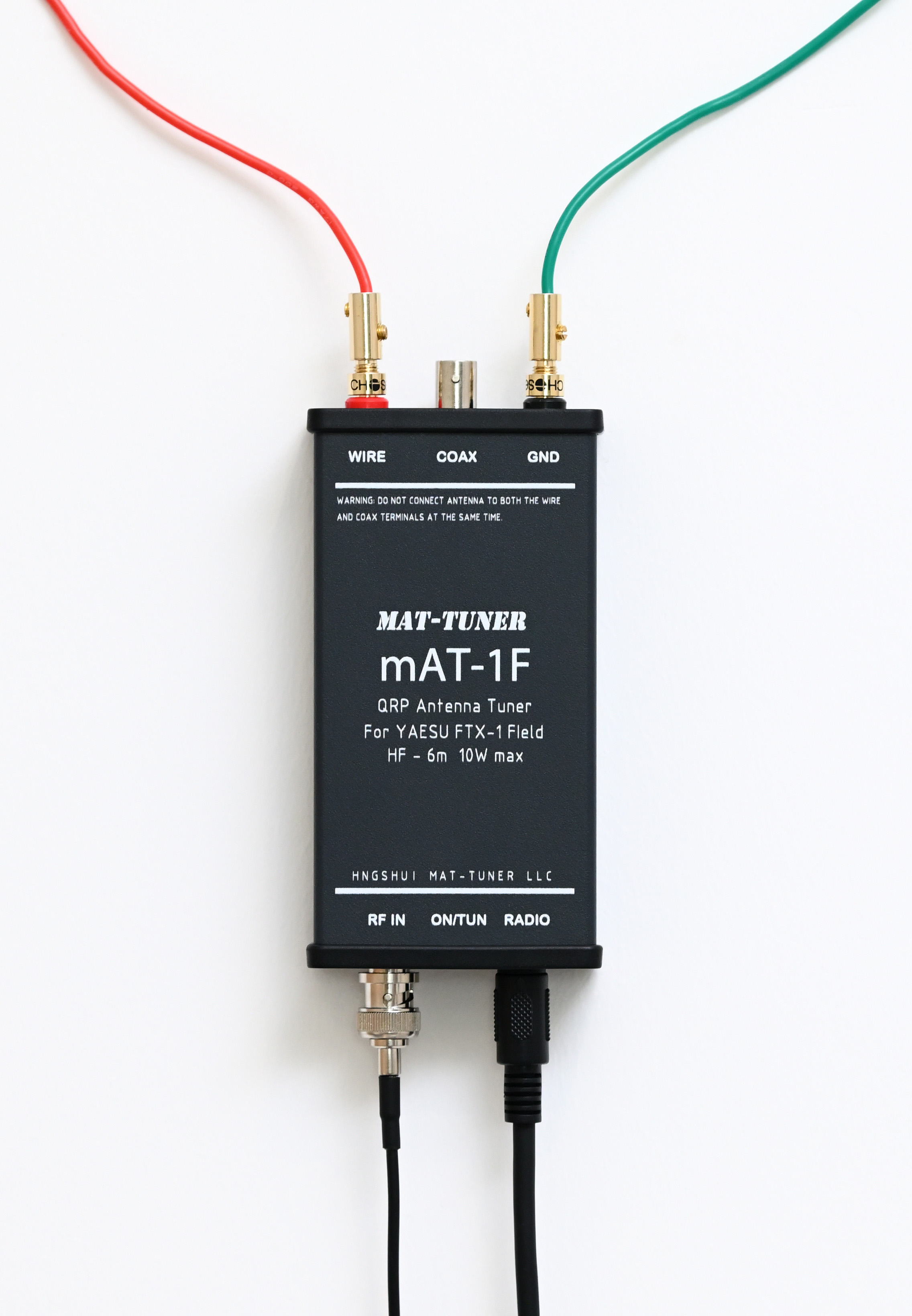

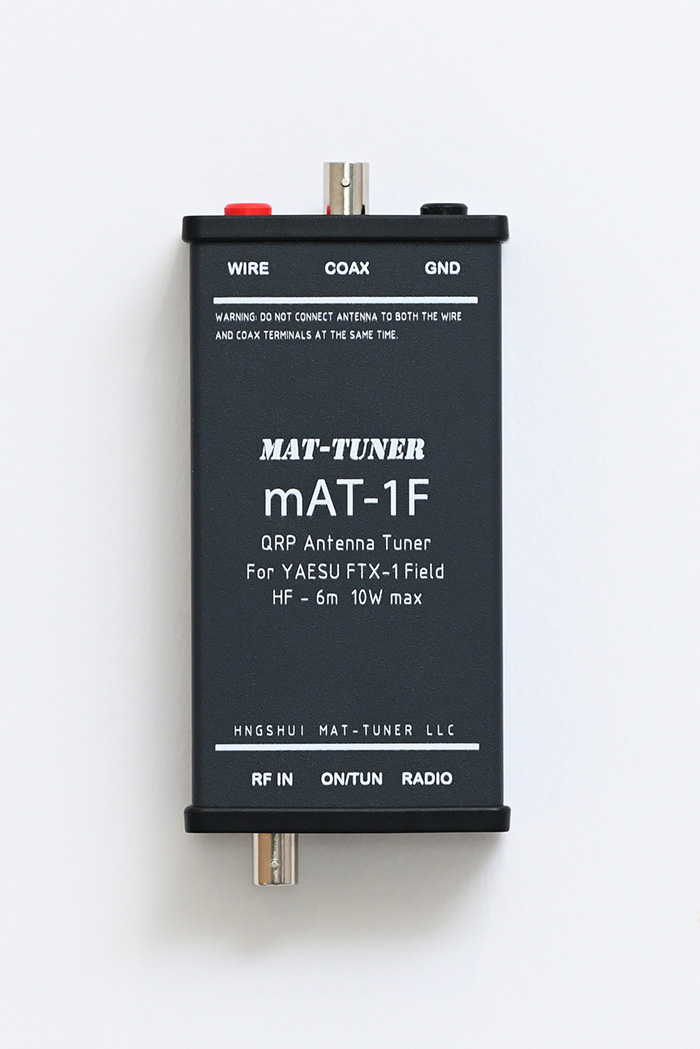

This is a photo of the mAT-1F antenna tuner. The top panel features two antenna connectors: a BNC jack and banana terminals. These allow users to operate either a coax-fed antenna or a wire antenna, providing excellent flexibility and convenience.
The bottom panel also includes two connectors: the RF input jack and the control connector. The RF input jack connects to the transmitter's HF antenna jack through a coaxial feed line, while the control cable jack connects to the transmitter's "TUNER" connector using the supplied mAT-CF control cable.
Included Accessories

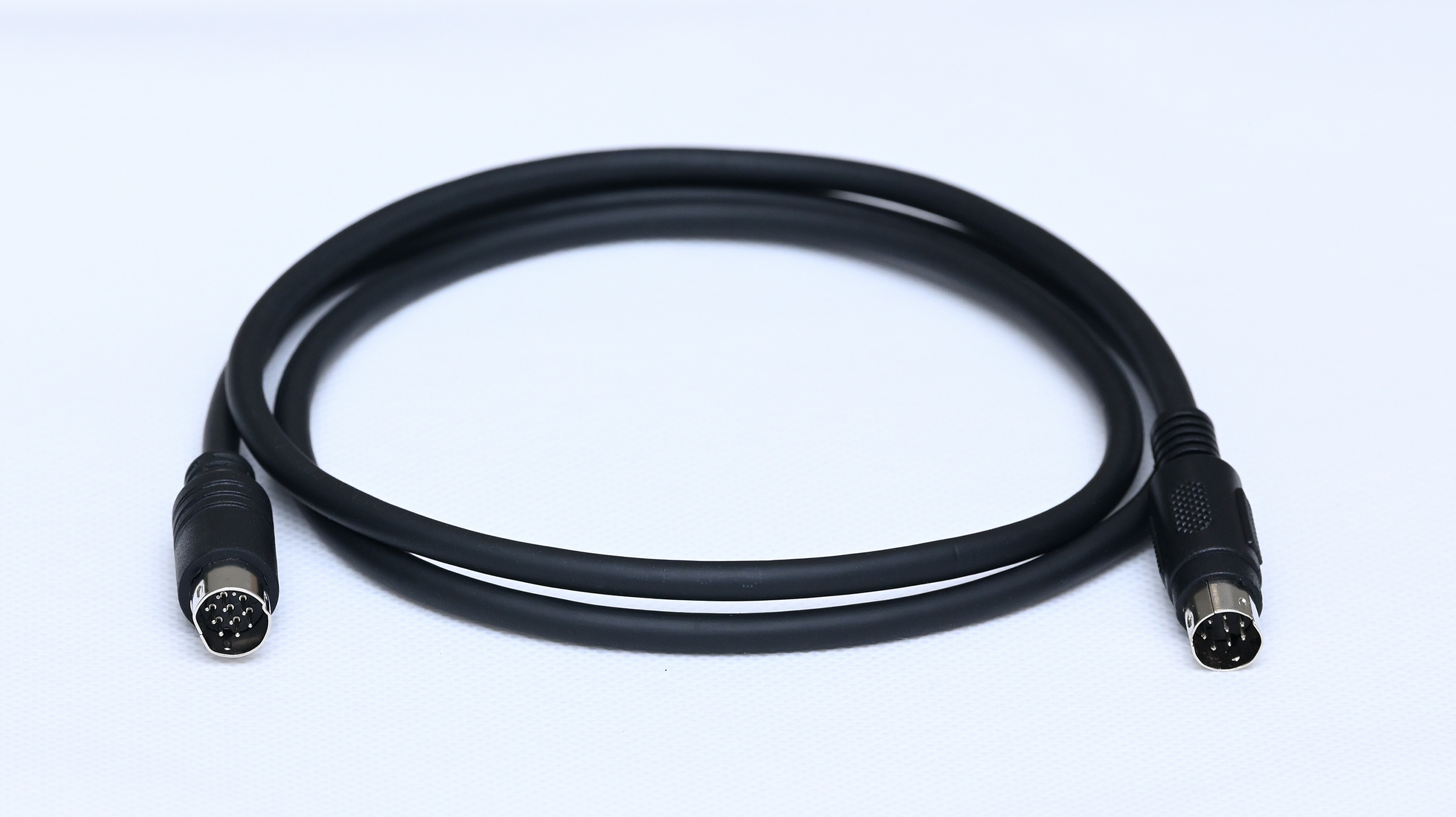

Control cable for connecting the tuner to the transmitter's "TUNER" connector
Coaxial feed line for connecting the tuner to the transmitter
Optional Accessories
Extended control cable for flexible installation
Extended coaxial feed line for remote antenna setups
control cable for connecting to transmitters with UHF connector
Extended control cable for flexible installation with UHF connector
Key Features
| Compatibility | Designed specifically for Yaesu FTX-1 Field transmitter |
|---|---|
| Antenna Connectors | BNC jack and banana terminals for coax-fed or wire antennas |
| Control Interface | Full front-panel control compatibility with original tuner |
| RF Input | Connects to transmitter's HF antenna connector via coaxial cable |
| Control Connection | Uses supplied mAT-CF control cable to transmitter's "TUNER" connector |
| Operation | Direct control from transmitter's front panel |
Technical Specifications
| Frequency Range | 1.8 - 54 MHz |
|---|---|
| Maximum RF Power | 10W (SSB/CW/Digital) |
| Impedance Range | 5 - 1500 Ω |
| Tuning Time | 5 seconds or less |
| Memory Channels | 16000 |
| Antenna Compatibility | Dipoles, verticals, Vees, beams, wire or any coax-fed antenna |
| Power Supply | Provided by transmitter through control cable (max 0.1A) |
| Operating Temperature | -10°C ~ +50°C |
| Dimensions (L x W x H) | 142 × 67 × 28 mm |
| Weight | 200 g |
| Construction | Metal shell, aluminum milling panel |
